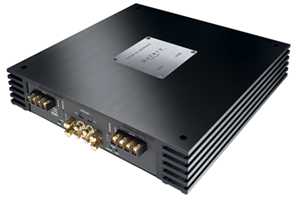

High-End 4-Channel Amplifier

Optical digital inputs used for the upcoming BRAX DSP (2 x Toslink) Separate terminal for connecting a BRAX Power Stabilizer directly to the switching transistors Eight capacitors (with a total capacity of 40.000 microFarad) take care of an extremly high current impulse load 200 Ampere high-performance switching transistors Interference-free power supply due to optimized suppression coil up to 300 Ampere with ultra-low internal resistance Especially developed transformers with highly-efficient core materials guarantee a total performance of more than 1.800 Watts High efficiency due to super-fast Schottky power diodes with more than 160 Ampere in total Below the lateral PC-boards there are in total 32 hand-selected high-end MOS-FET transistors which account for brilliant sound Processor controlled operating data management of the amplifier and power supply. It also controls the optional fan. Furthermore the processor is supervising the whole amplifier and shuts it down in case of malfunctions Engraved serial number on the stainless steel plate Impedance independed output power of around 280 Watts per channel 4-, 2- and 1-Ohm stable Optional fan at the bottom plate with porcessor supported fan control The solid heatsink, made of a special aluminium alloy takes care of a perfect cooling of power supply transistors and those of the amplifier
