10" / 250 mm High-End Subwoofer

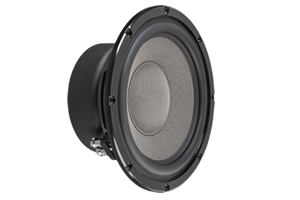

Brax ML10 Subwoofer

Remarkable stiff hand-scooped paper cone with unique “MicroSphere” coating consisting of micro ceramic hollow spheres embedded in a polymer layer Special shaped rubber surround for long linear cone excursion Optimized voice coil ventilation through large, mesh-protected holes in T-yoke and basket for almost zero compression effects and maximum heat dissipation Driver parameters optimized for perfect impulse response in compact, sealed enclosures 65 mm voice coil with exceptional winding height for high linear excursion and lowest possible distortion Solid, unique diecast basket Massive push-terminals for large wire gauge Ultra-precise machined magnet system for highest magnetic flux linearity

Specifications

Güç RMS Maks. 600 / 1200 Watt
Empedans 4 Ohm
DC Direnci 3,4 Ohm
Ses Bobin Çapı 65 mm
Rezonans Frekansı 35 Hz
Verimlilik 1 W / 1 m 87 dB
Dış Çapı 275 mm / 10.83 "
Kesme Çapı 235 mm / 9.25 "
Montaj Derinliği 114 mm / 4.49 "
Eşdeğer Hava Hacmi 40 L
Ses Sargı Yüksekliği 33 mm
Ağırlık 7,7 kg
