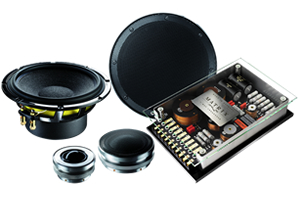

3 Way System Brax Matrix
High-End 3-way component system
2 x MATRIX 1.1 high-end tweeter incl. grille
2 x MATRIX 2.1 high-end mid speaker incl. grille
2 x MATRIX 6.1 high-end mid/bass incl. solid stainless steel mounting ring and grille
2 x 3-way crossover
1 x Name plate with serial number
1 x Drill
1 x High quality screw driver
16 x Magnetic stainless steel screw
3 x Allen key
Specifications Mid / Bass
Güç RMS Maks.
120 / 170 Watt
Empedans
4 Ohm
DC Direnci
3,4 Ohm
Çap
167 mm
Rezonans Frekansı
46 Hz
Montaj Çapı / Derinlik
143 mm / 64 mm
VAS
13,49 L
Specifications Midrange
Empedans
4 Ohm
DC Direnci
3,4 Ohm
Rezonans Frekansı
490 Hz
Montaj Çapı / Derinliği
78 mm / 25 mm
Izgaralı Çap / Yükseklik
85 mm / 47 mm
Specifications Tweeter
Empedans
4 Ohm
DC Direnci
3,4 Ohm
Rezonans Frekansı
750 Hz
Montaj Çapı / Derinliği
50 mm / 25 mm
Izgaralı Çap / Yükseklik
60 mm / 41 mm
Dimensions Crossover
H x W x D
56 x 170 x 260 mm;
2.20 x 6.70 x 10.24"
